WATERPROOF RATING: IP67
ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 300,000 Cycles
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 330gf± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

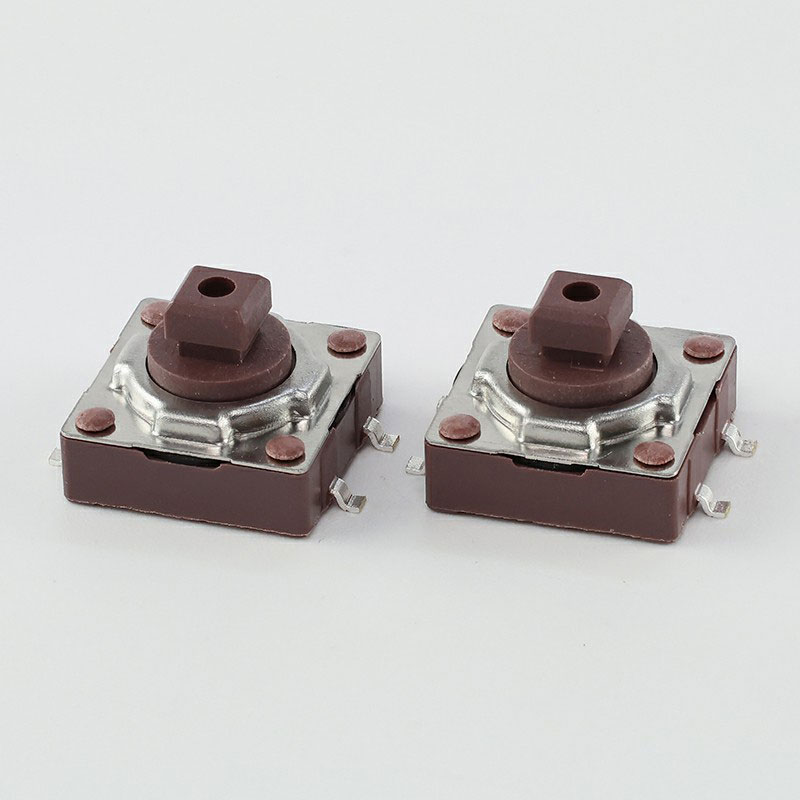

TSX12350 from KHON are 12x12 square stem waterproof tact switch with stainless steel cover.
※ TSX12350
| Funtion: | Momentary action |
| Contact Arrangement: | SPST,Normally Open |
| Termination: | SMD version |
※ SPECIFICATION
| Contact Rating | 50mA DC12V | |||
| Dielectric Strength | AC250V for 1 Minute | |||
| Contact Resistance | ≤100 mΩ Max. | |||
| Insulation Resistance | 100MΩ Min. | |||
| Life Expectancy | 100,000 cycles | |||
| Travel | 0.35mm ± 0.1mm | |||
| IP GRADE | IP67 | |||

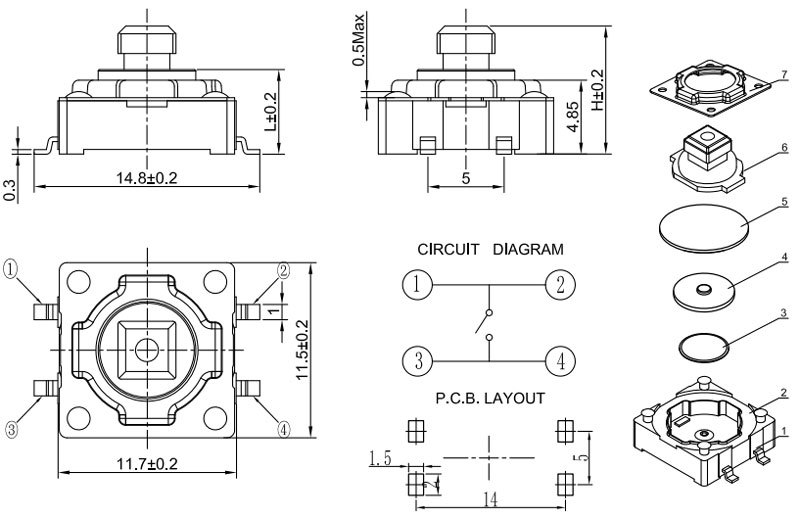

※ DIAGRAM
| H | 8.5 | 8.8 | 8.9 | 8.9 |
| L | 5.7 | 6 | 6.1 | 6.1 |
| H | 8.5 | 8.8 | 8.9 | 10.5 |
| L | 5.7 | 6 | 6.1 | 7.7 |
