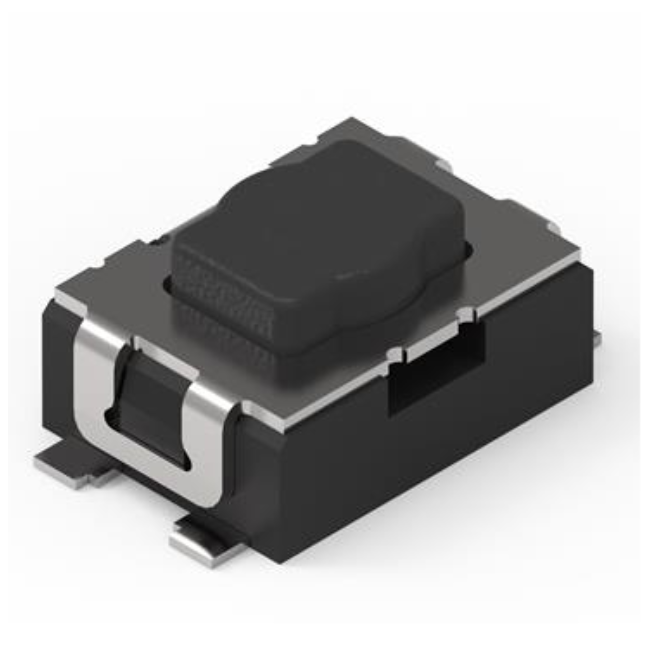

※ TSE34331
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | SMD version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V |
| CONTACT RESISTANCE | ≤100mΩ |
| INSULATION RESISTANCE | ≥100MΩ |
| DIELECTRIC STRENGTH | AC250V for 1 Minute |
| LIFE EXPECTANCY | 1,000,000 cycles |
| TRAVEL | 0.15mm |

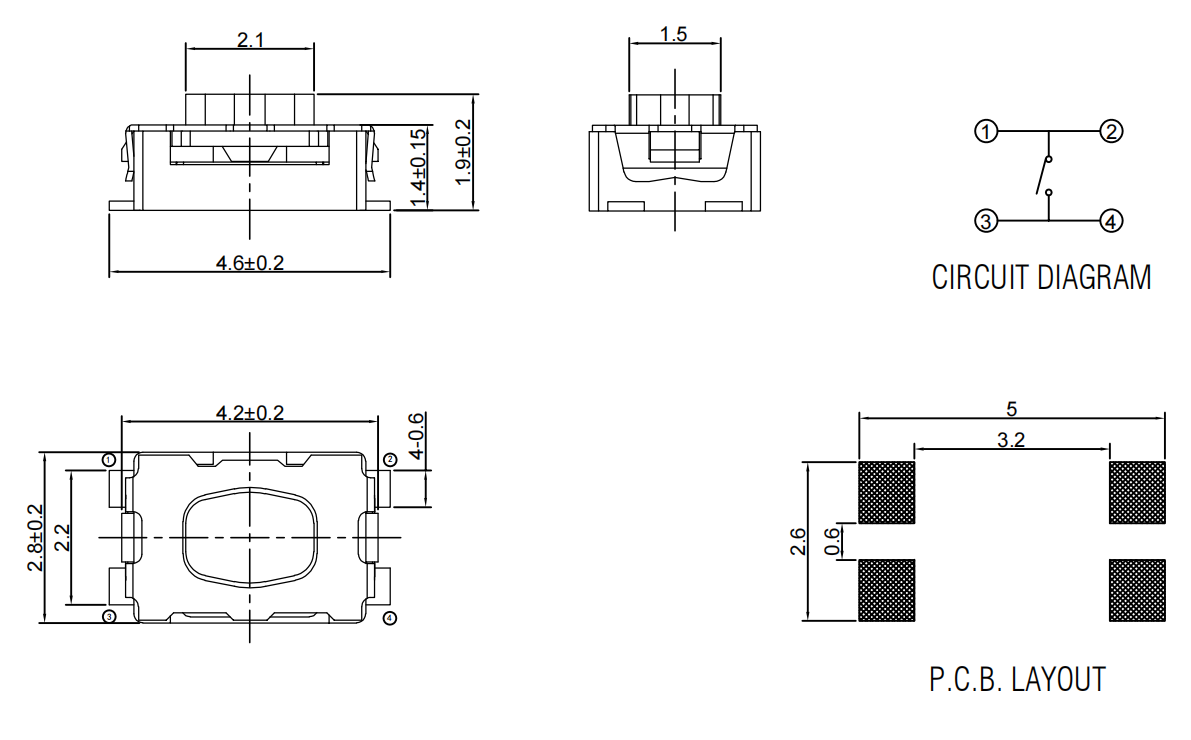

※ DIAGRAM
