WATERPROOF RATING:IP66
ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 50,000 Cycles,
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 180gf/280gf± 50gf
OPERATING TEMPERATURE: -25°C to 70°C
※ TSE05311
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | SMD version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V | |
| CONTACT RESISTANCE | ≤100mΩ | |
| INSULATION RESISTANCE | ≥100MΩ | |
| DIELECTRIC STRENGTH | AC250V for 1 Minute | |
| LIFE EXPECTANCY | 50,000 cycles | |
| TRAVEL | 0.25mm±0.1mm | |
| IP GRADE | IP66 | |

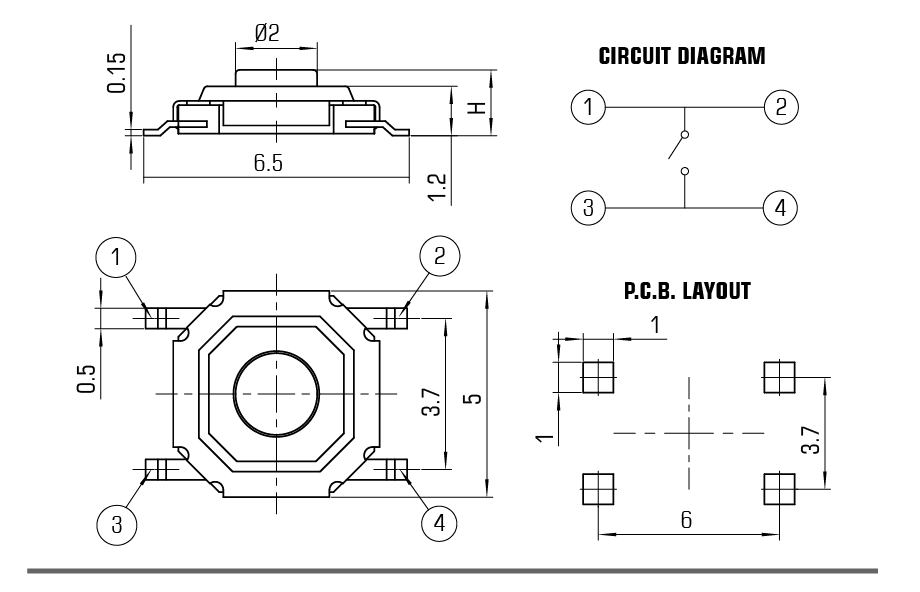

※ DIAGRAM
| H | 1.5 | 1.6 | 1.7 | 4.3 |
