Funtion: Momentary action
Contact Arrangement: SPST
Termination: THD version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC250V 50Hz / 1 Minute
LIFE EXPECTANCY: 100,000 / 300,000 cycles
※ TSA06131-0020
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | THD version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V |
| CONTACT RESISTANCE | ≤50mΩ/≤100mΩ |
| INSULATION RESISTANCE | ≥100MΩ |
| DIELECTRIC STRENGTH | AC250V for 1 Minute |
| LIFE EXPECTANCY | 100,000/300,000 cycles |
| TRAVEL | 0.25mm±0.1mm |

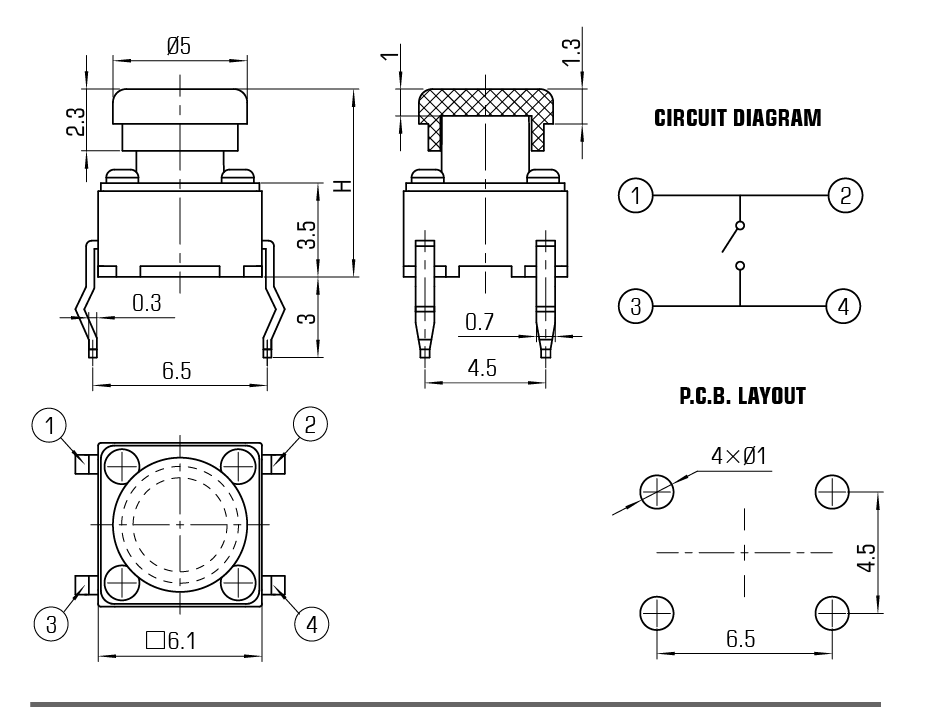

※ DIAGRAM
| H | 7 | 7.4 | 7.5 | 7.6 | 8 | 8.3 | 8.5 | 9 | 9.5 | 9.8 | 10 | 10.5 | 10.7 | 10.9 | 11 | 11.3 |
| H | 11.5 | 12 | 12.5 | 13 | 13.5 | 14 | 14.5 | 15 | 15.5 | 16 | 16.5 | 16.6 | 17 | 17.5 | 18 | 18.5 |
| H | 19 | 19.5 | 20 | 20.5 | 20.7 | 21.2 | 22 | 23 | 24 | 24.5 | 25.5 | 25.8 | 26 | 27 |
