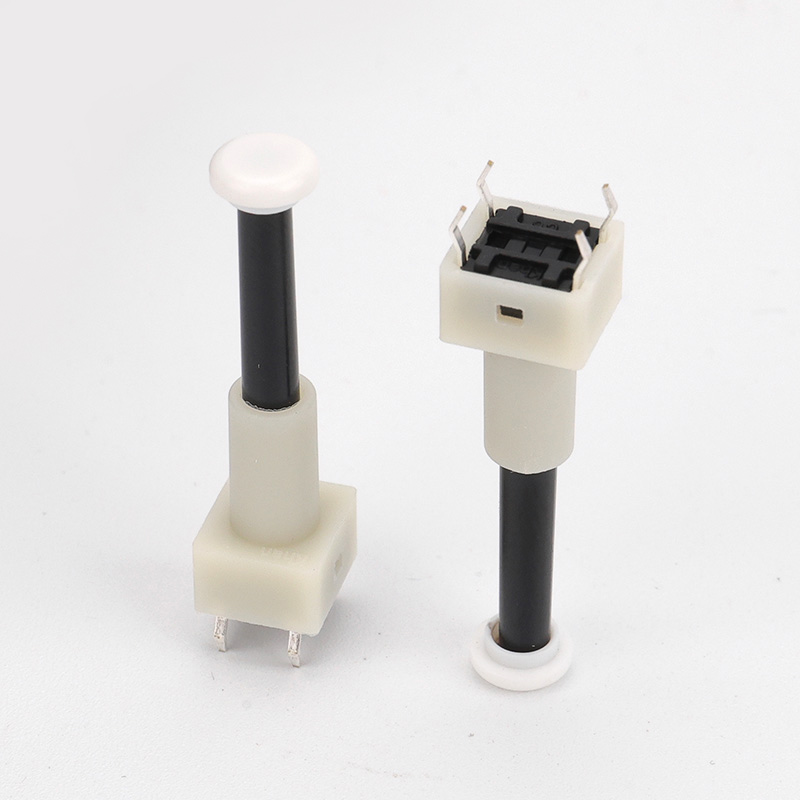

※ TSA06141-2030
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | THD version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V |
| CONTACT RESISTANCE | ≤50mΩ/≤100mΩ |
| INSULATION RESISTANCE | ≥100MΩ |
| DIELECTRIC STRENGTH | AC250V for 1 Minute |
| LIFE EXPECTANCY | 100,000/300,000 cycles |
| TRAVEL | 0.25mm±0.1mm |

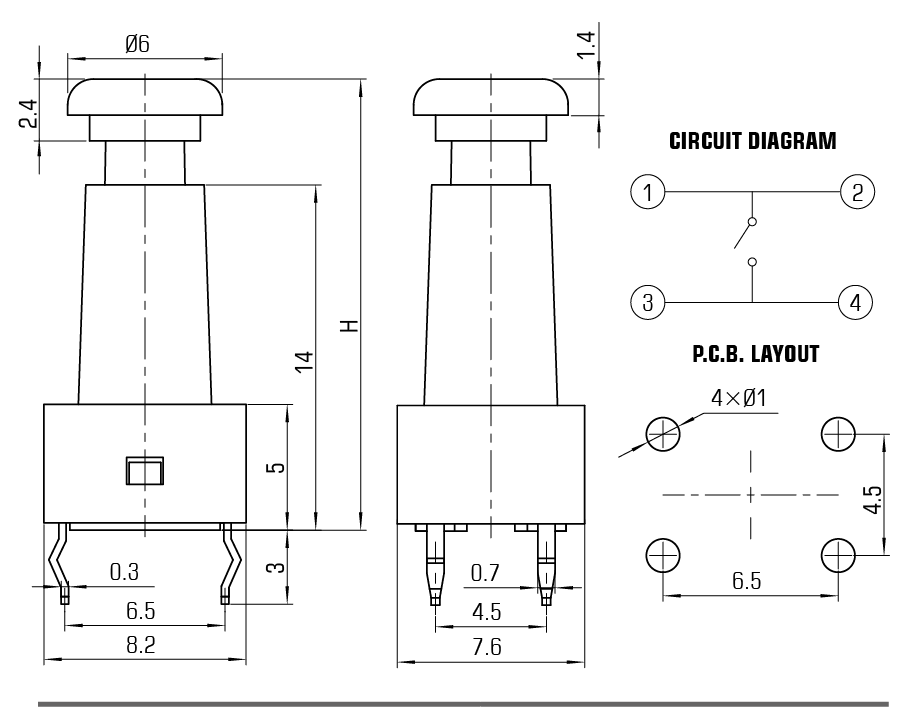

※ DIAGRAM
| H | 21.2 | 22 | 23 | 24 | 24.5 | 25.5 | 25.8 | 26 | 27 | 28.2 | 29 | 30 | 32 |
