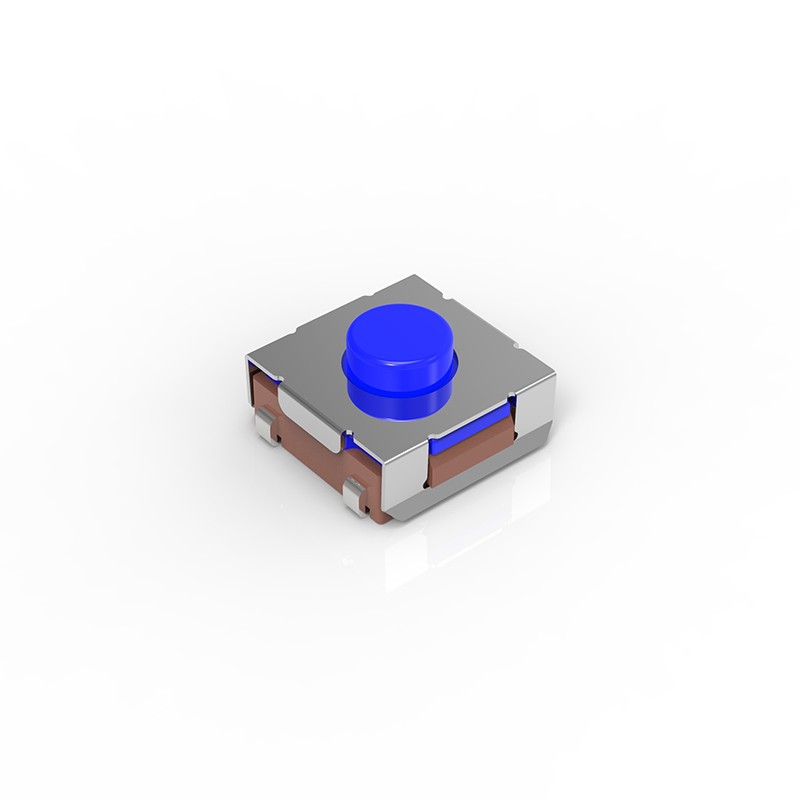

※ TSR06631 / TSG06631
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | SMD version |
Remark: TSR06631 means packed in reel, TSG06631 means packed in bulk
※ SPECIFICATION
| Contact Rating | 50mA DC12V | |||
| Dielectric Strength | AC250V for 1 Minute | |||
| Contact Resistance | ≤100 mΩ Max. | |||
| Insulation Resistance | 100MΩ Min. | |||
| Life Expectancy | 100,000 cycles | |||
| Travel | 0.25mm ± 0.1mm | |||

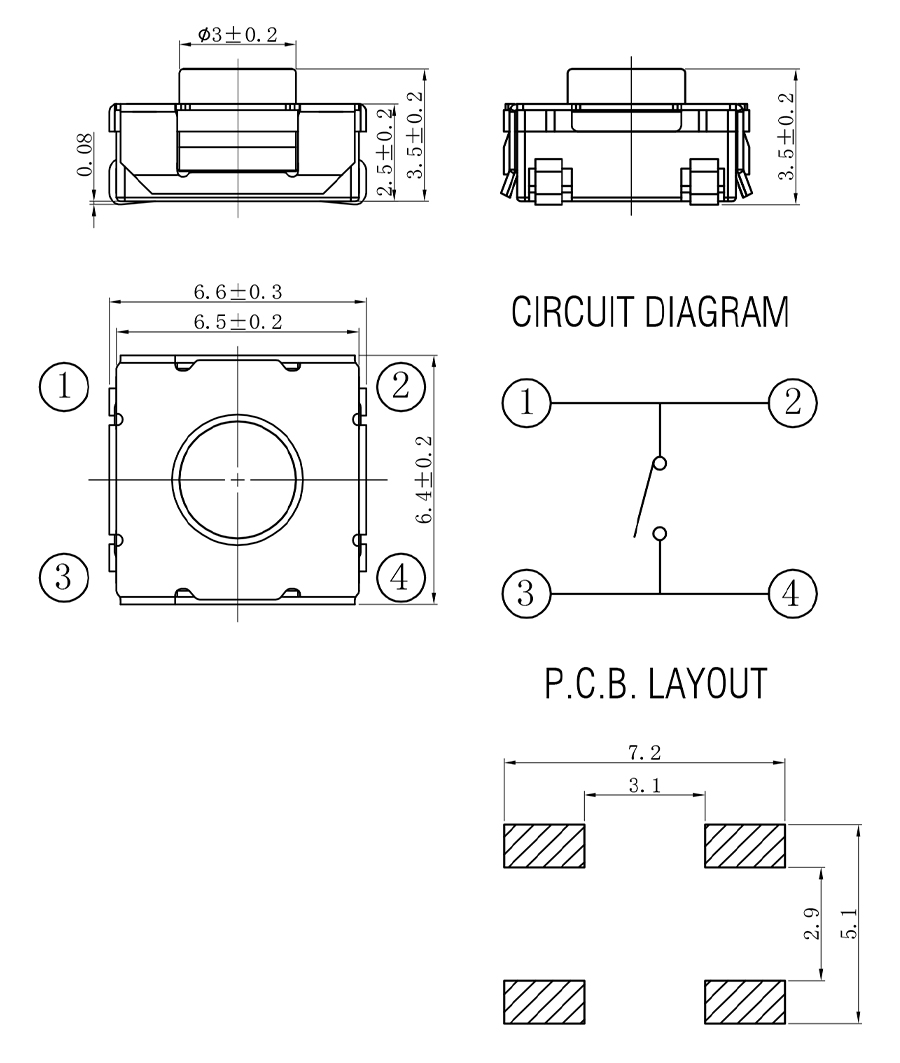

※ DIAGRAM
| H | 3.5 | 5 |
