WATERPROOF RATING: IP67
ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 100,000 Cycles,
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 180gf/280gf± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

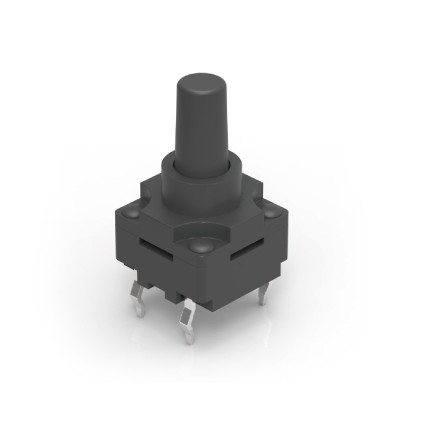

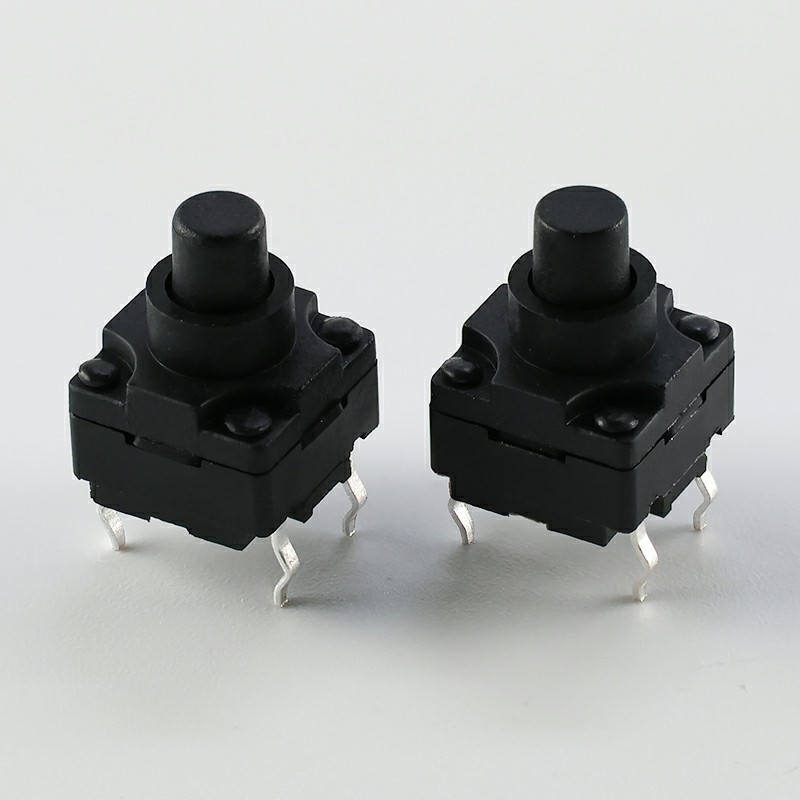

※ TSW08116
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | THD version |
※ SPECIFICATION
| Contact Rating | 50mA DC12V | |||
| Dielectric Strength | AC250V for 1 Minute | |||
| Contact Resistance | ≤100 mΩ Max. | |||
| Insulation Resistance | 100MΩ Min. | |||
| Life Expectancy | 100,000 cycles | |||
| Travel | 0.35mm ± 0.1mm | |||
| IP GRADE | IP67 | |||

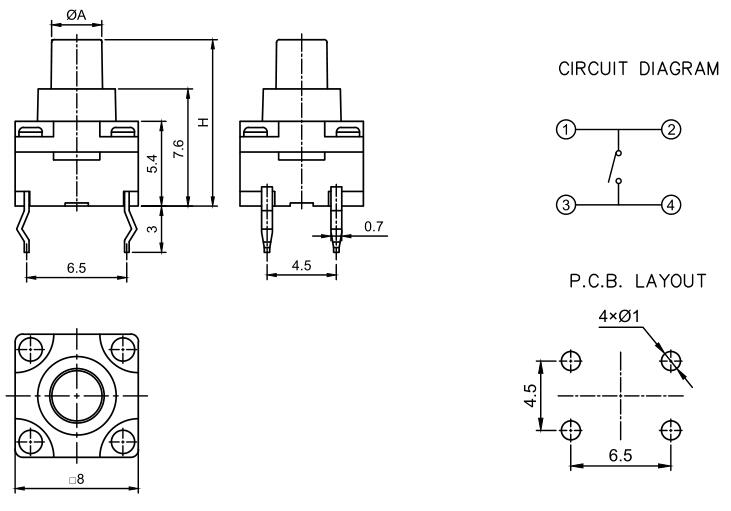

※ DIAGRAM
| H | 8.5 | 8.8 | 9 | 9.5 | 10 | 10.3 | 10.5 | 11 | 11.2 | 11.5 |
| A | 3.2 | 3.2 | 3.2 | 3.2 | 3.2 | 3.1 | 3.1 | 3.1 | 3.1 | 3.2 |
| H | 11.8 | 12 | 12.5 | 13 | 13.5 | 14 | 14.5 | 15 | 15.5 | 16 |
| A | 3.2 | 3 | 3.1 | 3.2 | 3.2 | 3.1 | 3.2 | 3 | 3.2 | 3.1 |
| H | 16.5 | 17 | 17.1 | 17.5 | 18 | 18.5 | 18.5 | 19 | 19.5 | 20 |
| A | 3.1 | 3.2 | 3.1 | 3.2 | 3.2 | 3.2 | 2 | 3 | 3.2 | 3 |
