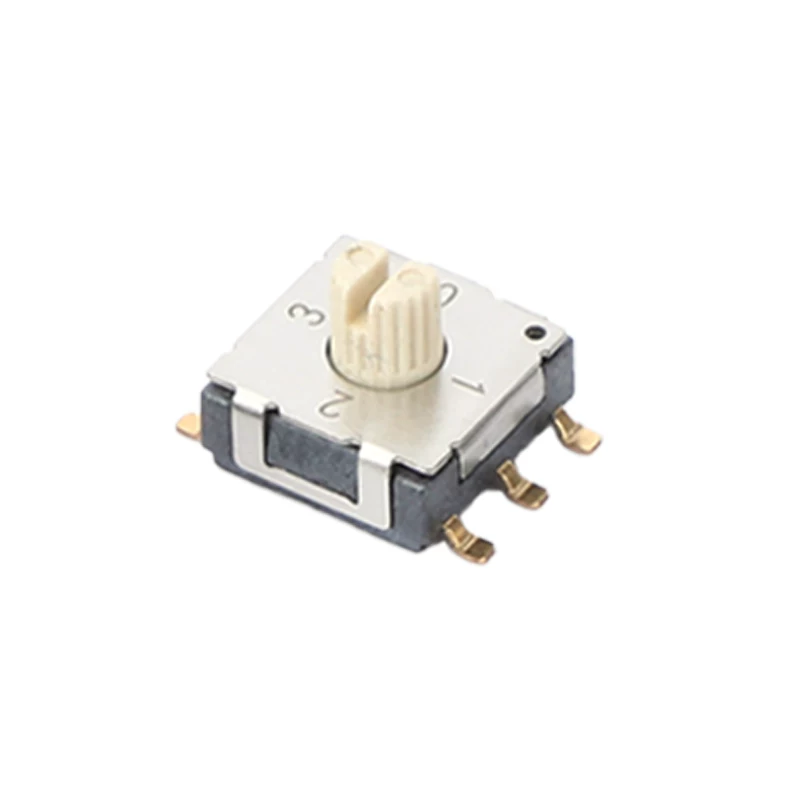

※ ES07MH-04RBZ-L1000
| SPECIFICATIONS | |
| Funtion: | ON-OFF |
| Termination: | SMD version |
| Mechanical | |
| Actuation Force: | 40～200gf |
| Life Expectancy: | 10,000 Operations |
| Electrical | |
| Maximum Contact Rating: | 100mA . 50V DC |
| Minimum Contact Rating: | 1μA . 20V DC |
| Dielectric Strength: | 250V AC for 1Min. |
| Contact Resistance: | 100mΩ Max. |
| Insulation Resistance: | 100MΩ Min. |
| Total Rotation Angle: | 360°（4 Steps） |
| Environmental | |
| Operating Temperature: | -25～+70℃ |
| Relative Humidity: | (40℃)≤95%RH |
※ DIAGRAM
