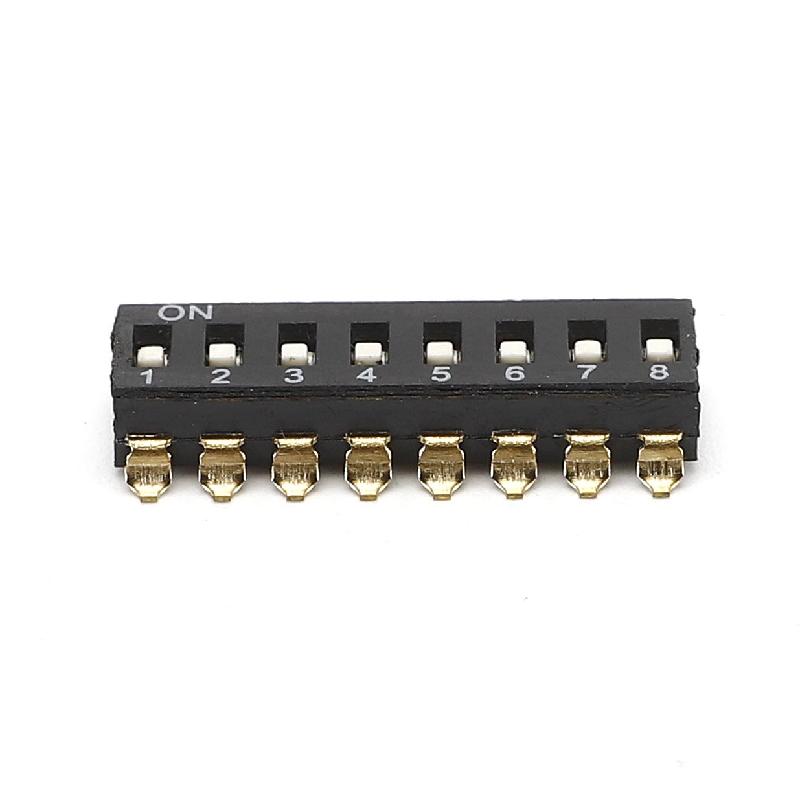

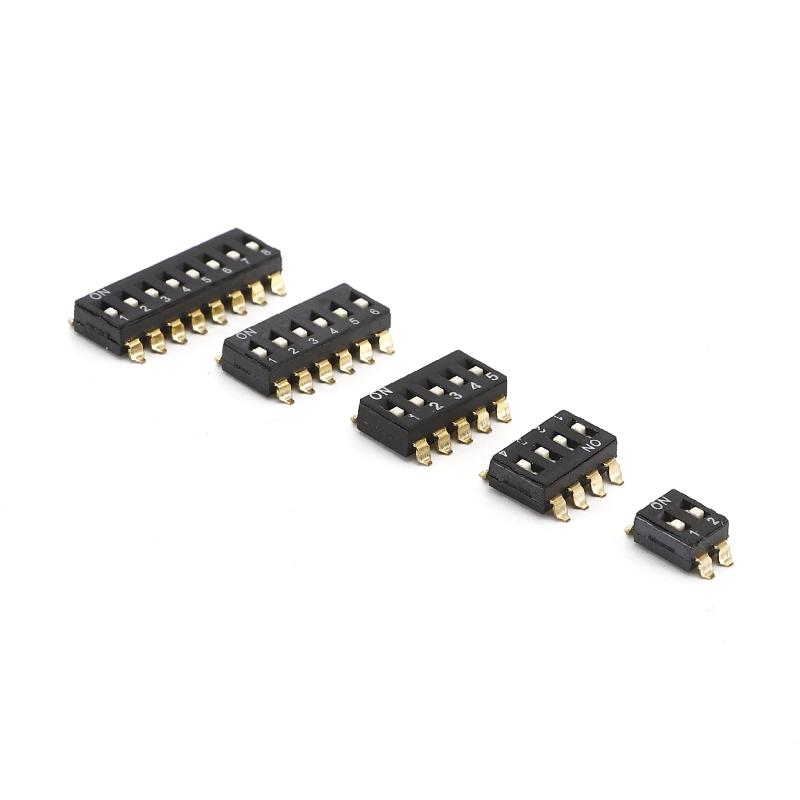

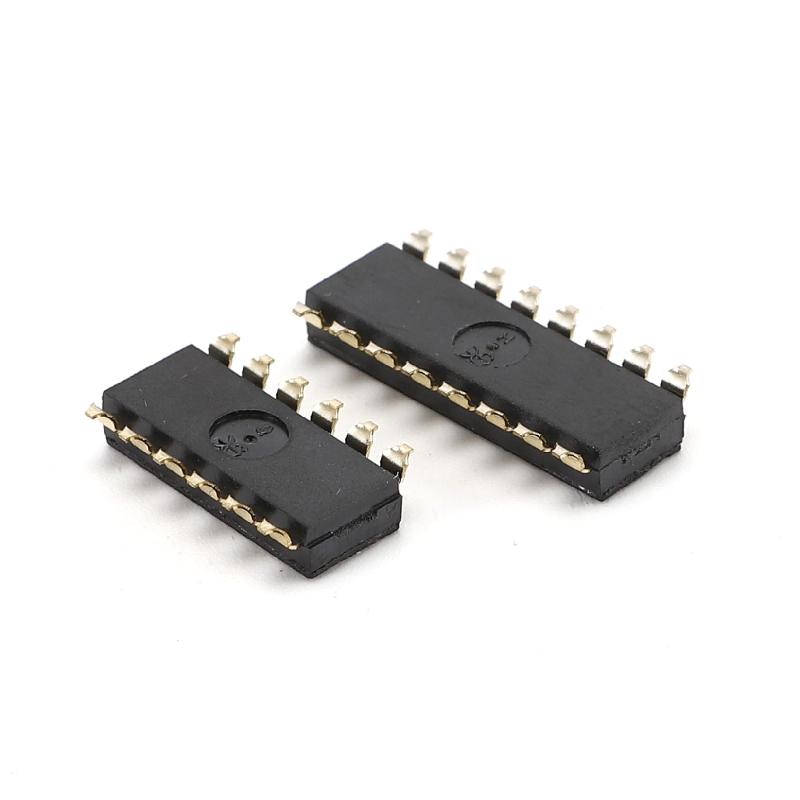

| SPECIFICATIONS | |
| Funtion: | ON-OFF |
| Contact Arrangement: | MPMT,Normally Open |
| Termination: | THD version |
| Environmental | |
| Operating Temperature: | -30～+85℃ |
| Relative Humidity: | (40℃)≤95% |
| Electrical | |
| Contact Rating: | 25mA 12V DC |
| 100mA 12V DC | |
| Dielectric Strength: | 500VAC/1min |
| Contact Resistance: | 50mQMax. |
| Insuation Resistance: | 100MQMin. |
| Mechanical | |
| Press Force: | 500gf Max |
| Life Expectancy: | 2,000 times |
| Materials | |
| 1.Terminal: | Copper with Gold cladding |
| 2.Holder: | PPS UL94-V0 |
| 3.Contact: | Copper with Gold cladding |
| 4.Cover: | PPS UL94-V0 |
| 5.Stem: | PA46 UL94-V0 |
