Add to Cart Specifications
Product Details

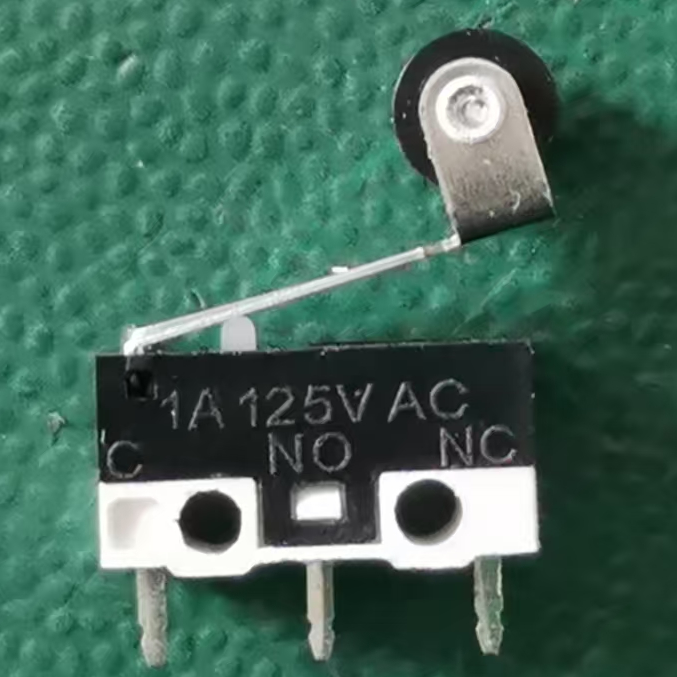

※ KW10-13

Funtion: Momentary action
Contact Arrangement: SPST, Normally Open
Termination: THD version



※ SPECIFICATION

ELECTRICAL RATING

1A , AC125V
CONTACT RESISTANCE ≤500mΩ
INSULATION RESISTANCE ≥100MΩ
DIELECTRIC STRENGTH AC500V 50Hz / 1 Minute
LIFE EXPECTANCY 100,000 cycles

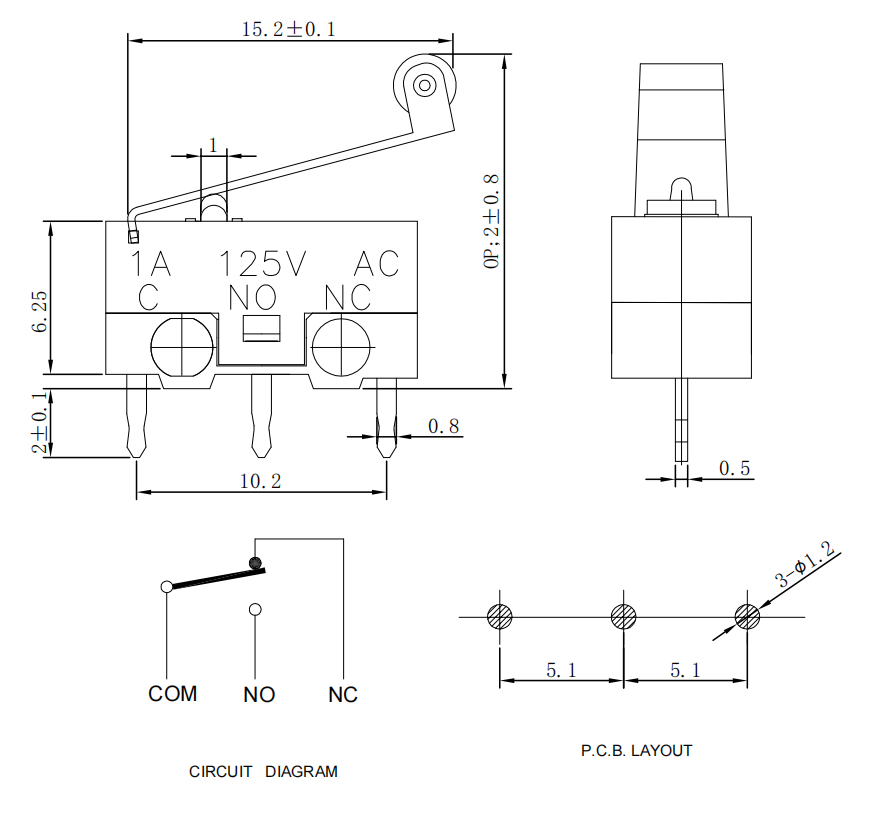

※ DIAGRAM

Product Application
Our products cover household appliances,3C intelligent industrial control, office equipment, medical equipment security equipment and other fields
