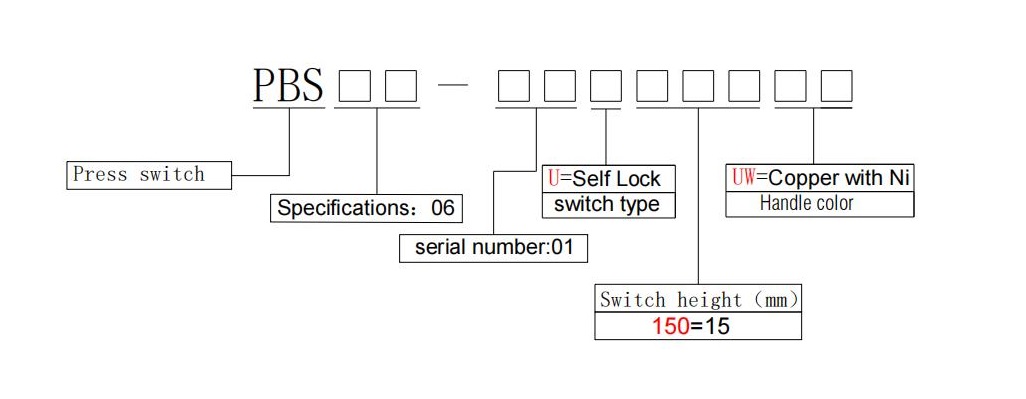

※ PBS06-01
| Funtion: | ON-OFF |
| Contact Arrangement: | 1P1T,Normally Open |
| Termination: | THD version |
※ SPECIFICATION
| Environmental | |
| Operating Temperature: | -25～+70℃ |
| Relative Humidity: | (40℃)≤95% |
| Electrical | |
| Contact Rating: | 0.3A 36V DC |
| Dielectric Strength: | 250VAC/1min |
| Contact Resistance: | 100mΩ Max. |
| Insulation Resistance: | 100MΩ Min. |
| Travel: | 1.5～2mm |
| Sealing | / |
| Mechanical | |
| Actuation Force: | 250±100gf |
| Life Expectancy: | 5000 |

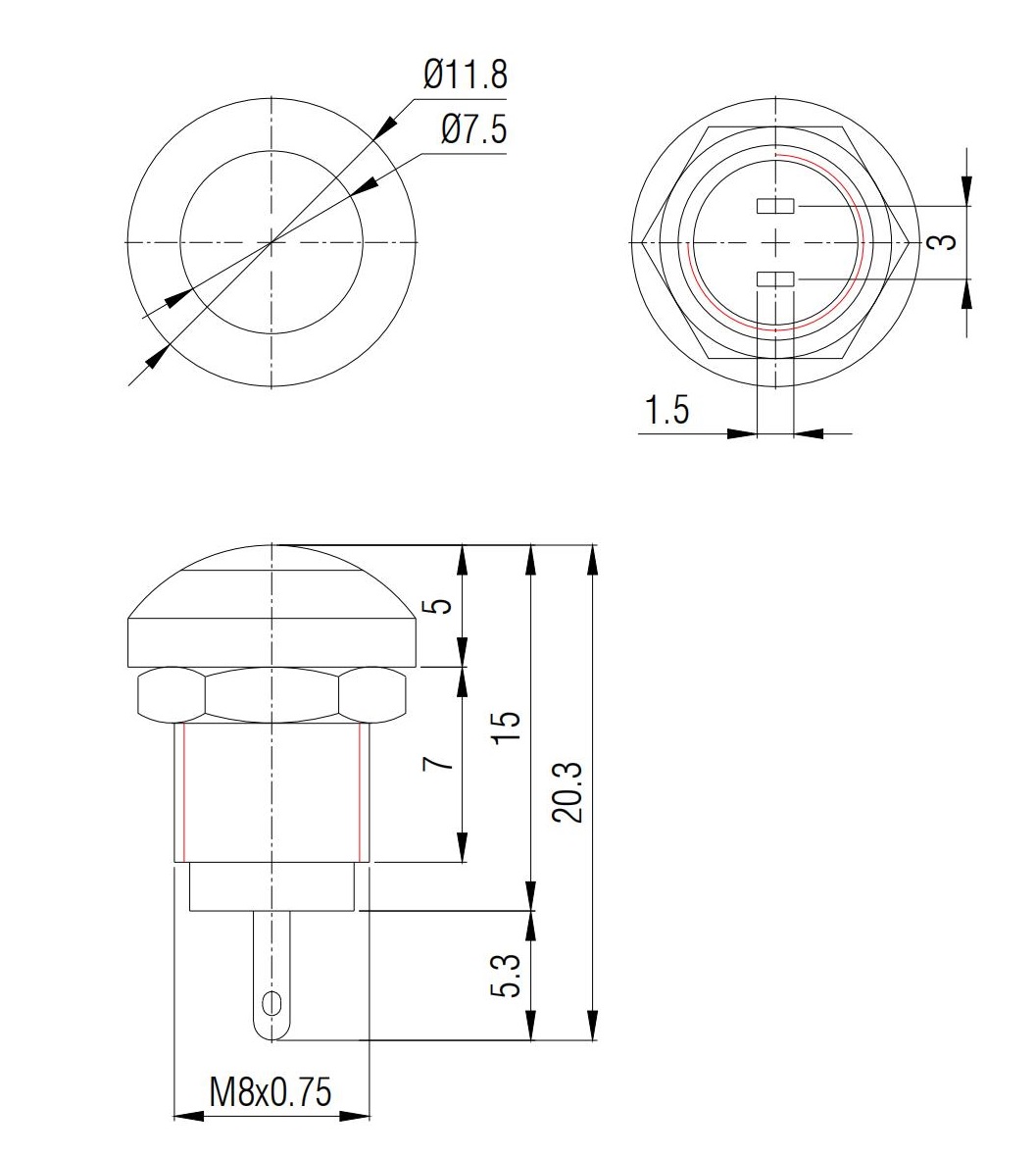

※ DIAGRAM
