Funtion: Momentary action
Contact Arrangement: SPST
Termination: THD version
ELECTRICAL RATING: 50mA , DC12V
CONTACT RESISTANCE: ≤100mΩ
INSULATION RESISTANCE: ≥100MΩ
DIELECTRIC STRENGTH: AC250V / 1 Minute
LIFE EXPECTANCY: 100,000 / 300,000 cycles

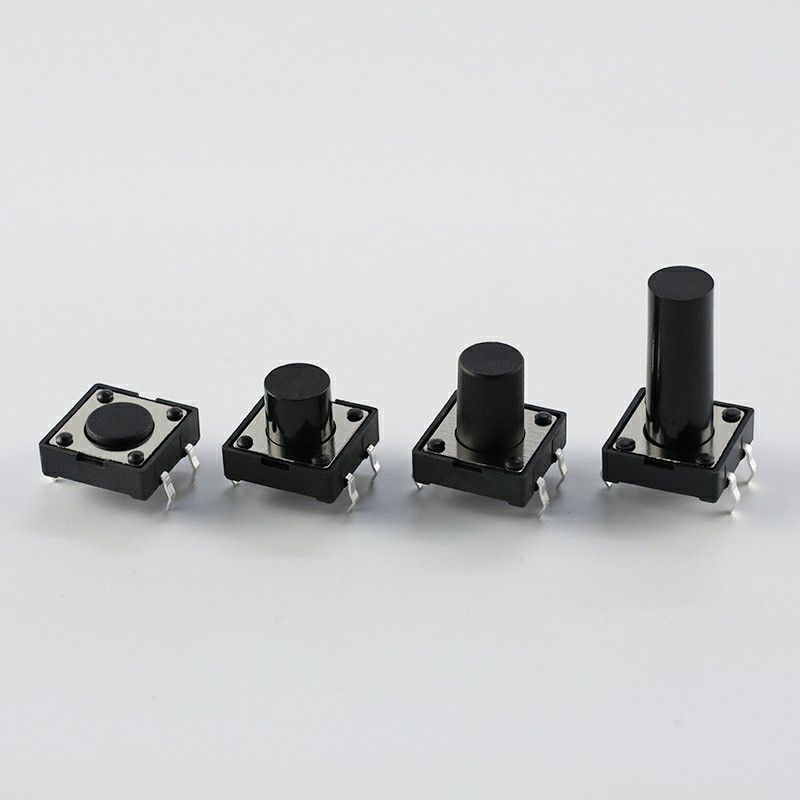

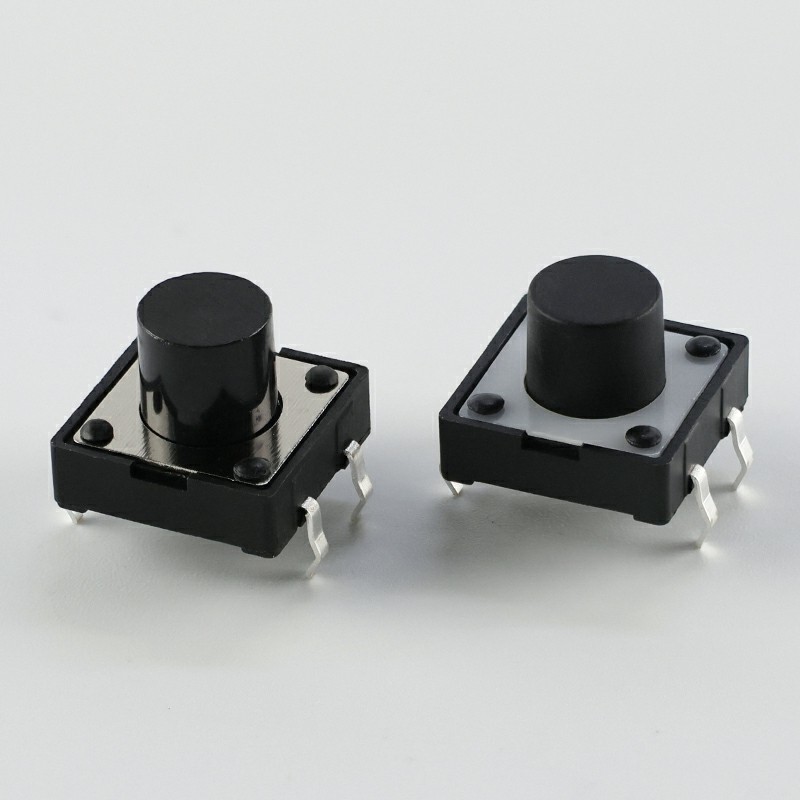

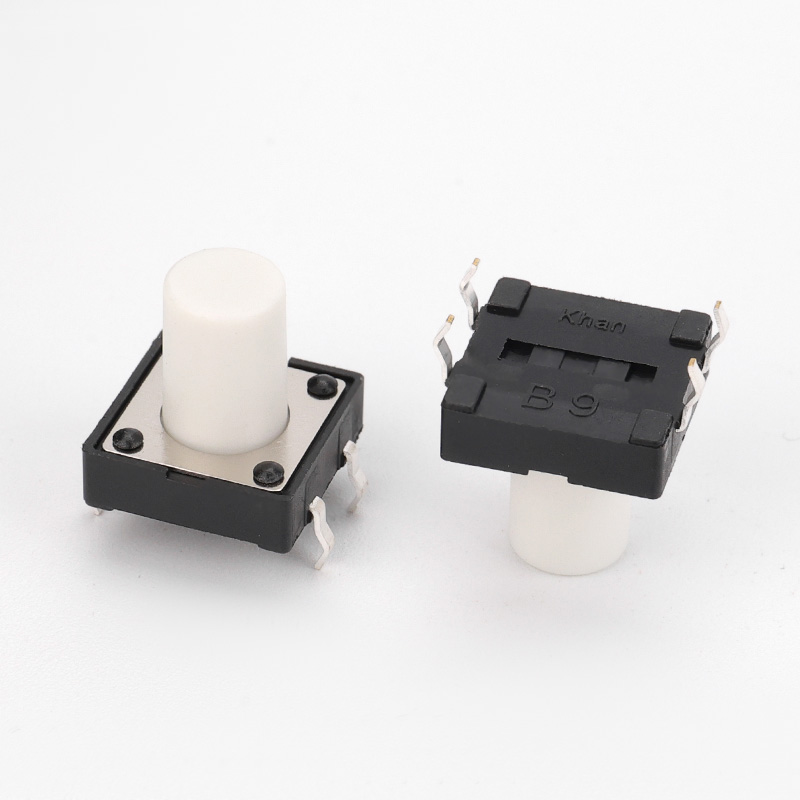

※ TSA12111
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | THD version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V |
| CONTACT RESISTANCE | ≤50mΩ/≤100mΩ |
| INSULATION RESISTANCE | ≥100MΩ |
| DIELECTRIC STRENGTH | AC250V for 1 Minute |
| LIFE EXPECTANCY | 100,000/300,000 cycles |
| TRAVEL | 0.3mm±0.1mm |

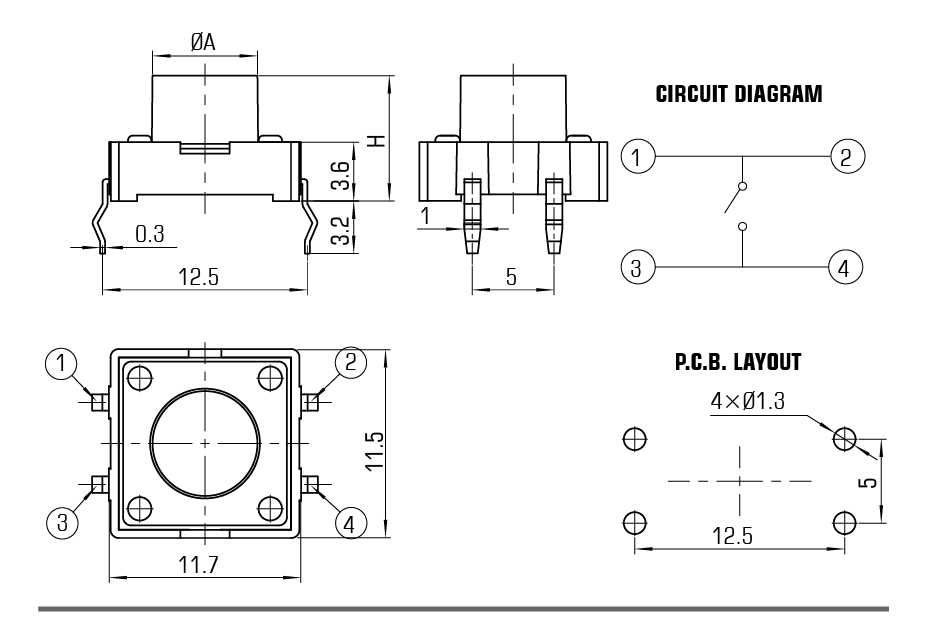

※ DIAGRAM
| H | 4.3 | 4.5 | 5 | 5.5 | 6 | 6.5 | 7 | 7.5 | 7.7 | 8 | 8.5 | 9 | 9.5 | 10 |
| A | 6.4 | 6.4 | 6.4 | 6.4 | 6.4 | 6.2 | 6.3 | 6.2 | 6.2 | 6.3 | 6.3 | 6.2 | 6.2 | 6.3 |
| H | 10.5 | 11 | 11.5 | 12 | 12.5 | 13 | 14 | 15 | 15.5 | 17 | 18 | 19.7 | 21 | |
| A | 6.2 | 6.2 | 6.2 | 6.2 | 6.2 | 6.2 | 6.2 | 6.2 | 6.2 | 6.1 | 6.1 | 6.1 | 6.1 |
