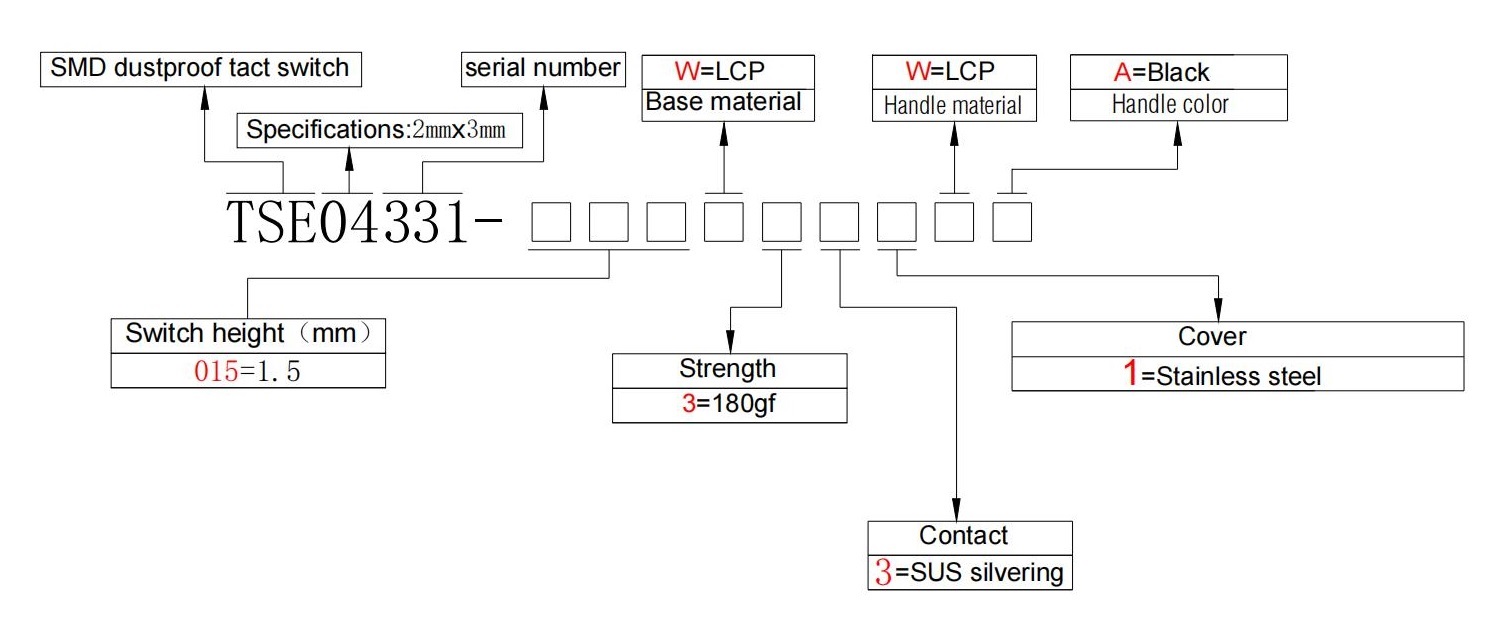

※ TSE04331
| SPECIFICATIONS | |
| Funtion: | Momentary action |
| Contact Arrangement | SPST,Normally Open |
| Termination: | SMD version |
| Environmental | |
| Operating Temperature: | -25～+70℃ |
| Relative Humidity: | (40℃)≤95% |
| Electrical | |
| Contact Rating | 50mA 12V DC |
| Dielectric Strength | 250VAC /1min |
| Contact Resistance: | 100mΩ Max. |
| Insulation Resistance: | 100MΩ Min. |
| Travel; | 0.2±0.1mm |
| Sealing | IP6X |
| Mechanical | |
| Actuation Force: | 220gf |
| Life Expectancy | 100K |

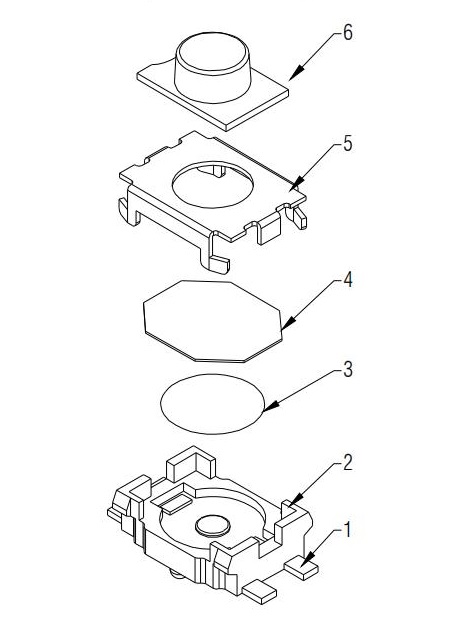

| Materials | |
| 6.Stem: | Black PPA |
| 5.Cover: | Stainless steel |
| 4.Waterproof membrane | Polyimide |
| 3.Spring | Stainless steel covered with silver |
| 2.Holder | Black LCP |
| 1.Terminal: | Phosphor copper plated with silver |
