WATERPROOF RATING: IP66
ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 100000 Cycles
CONTACT RESISTANCE: 100mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 280gf± 50gf
OPERATING TEMPERATURE: -25°C to 70°C
| SPECIFICATIONS | |
| Funtion | Momentary action |
| Contact Arrangement: | SPST,Normally Open |
| Termination: | SMD version |
| Environmental | |
| Operating Temperature | -25～+70℃ |
| Relative Humidity | (40℃)≤95% |
| Electrical | |
| Contact Rating | 50mA 12V DC |
| Dielectric Strength: | 250VAC /1min |
| Contact Resistance | 100mΩ Max |
| nsulation Resistance: | 100MΩ Min |
| Travel: | 0.2±0.1mm |
| Sealing | IP6X |
| Mechanical | |
| Actuation Force: | 220gf |
| Life Expectancy | 100K |

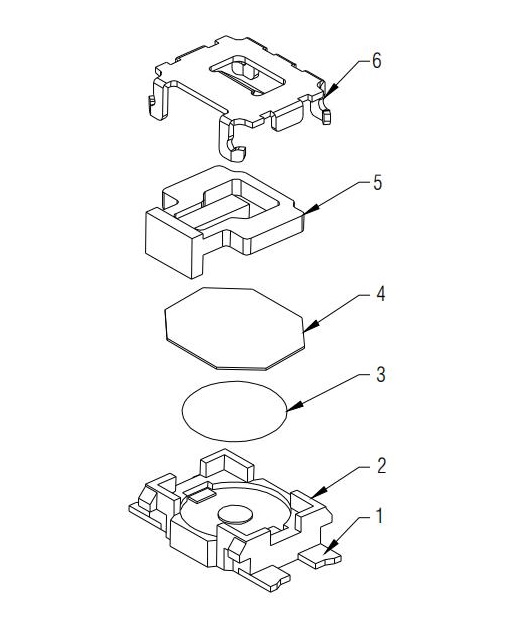

| Materials | |
| 6.Cover: | Stainless steel |
| 5.Stem | Black PA46 |
| 4.Waterproof membrane | Polyimide |
| 3.Spring | Stainless steel covered with silver |
| 2.Holder: | Black LCP |
| 1.Terminal: | Phosphor copper plated with silver |
