ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 100,000 Cycles, 300,000 Cycles,500,000 Cycles，
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 130/180gf/250gf/280gf/360gf ± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

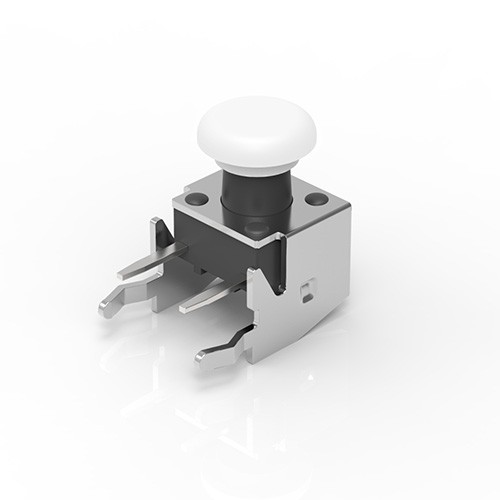

※ TSA06231-0030
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | Right angle version |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V |
| CONTACT RESISTANCE | ≤50mΩ/≤100mΩ |
| INSULATION RESISTANCE | ≥100MΩ |
| DIELECTRIC STRENGTH | AC250V for 1 Minute |
| LIFE EXPECTANCY | 100,000/300,000 cycles |
| TRAVEL | 0.25mm±0.1mm |

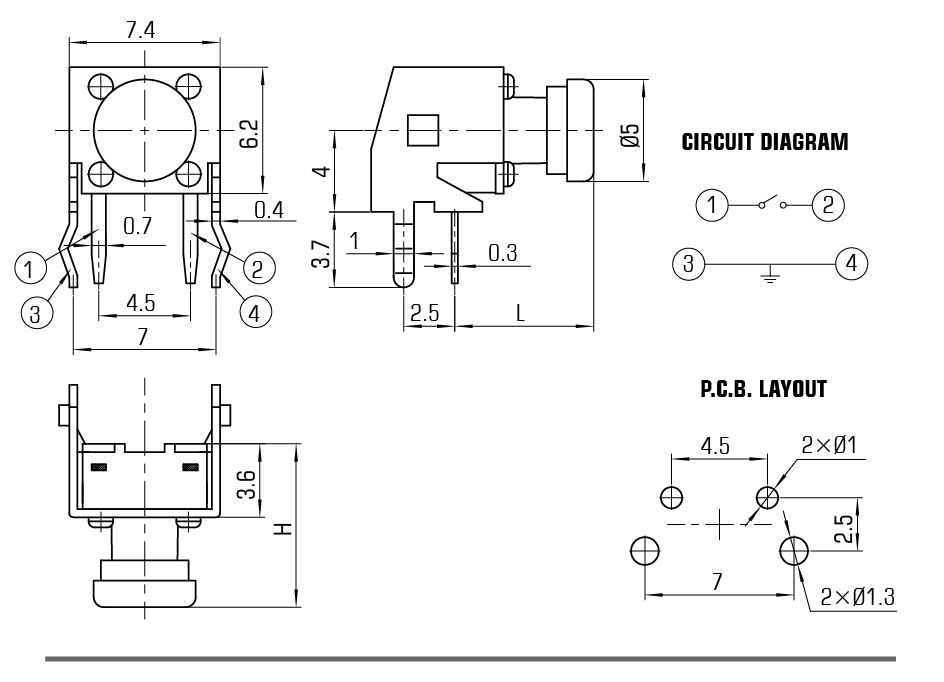

※ DIAGRAM
| H | 7 | 7.4 | 7.5 | 7.6 | 8 | 8.3 | 8.5 | 9 | 9.5 | 9.8 | 10 |
| L | 5.85 | 6.25 | 6.35 | 6.45 | 6.85 | 7.15 | 7.35 | 7.85 | 8.35 | 8.65 | 8.85 |
| H | 10.5 | 10.7 | 10.9 | 11 | 11.3 | 11.5 | 12 | 12.5 | 13 | 13.5 | 14 |
| L | 9.35 | 9.55 | 9.75 | 9.85 | 10.15 | 10.35 | 10.85 | 11.35 | 11.85 | 12.35 | 12.85 |
| H | 14.5 | 15 | 15.5 | 16 | 16.5 | 16.6 | 17 | 17.5 | 18 | ||
| L | 13.35 | 13.85 | 14.35 | 14.85 | 15.35 | 15.45 | 15.85 | 16.35 | 16.85 |
