TSA06238 Tact Switch
TSA06238 Tact Switch
TSA06238 Tact Switch
TSA06238 Tact Switch
TSA06238 Tact Switch

TSA06238 Tact Switch

ELECTRICAL RATING: 50mA @ 12VDC
LIFE EXPECTANCY: 100,000 Cycles, 300,000 Cycles,500,000 Cycles，
CONTACT RESISTANCE: 50mΩ Max.
INSULATION RESISTANCE: 100MΩ Min.
DIELECTRIC STRENGTH: 250V AC for 1minute
ACTUATION FORCE: 130/180gf/250gf/280gf/360gf ± 50gf
OPERATING TEMPERATURE: -25°C to 70°C

Add to Cart Specifications
Product Details

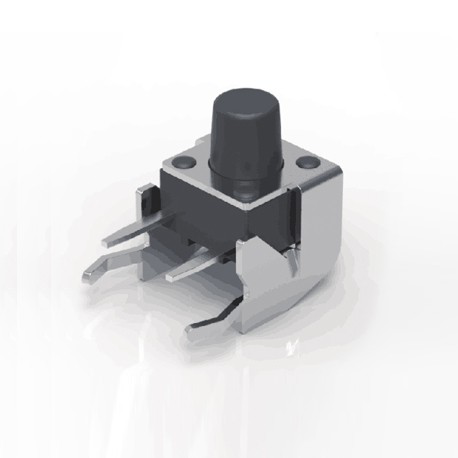

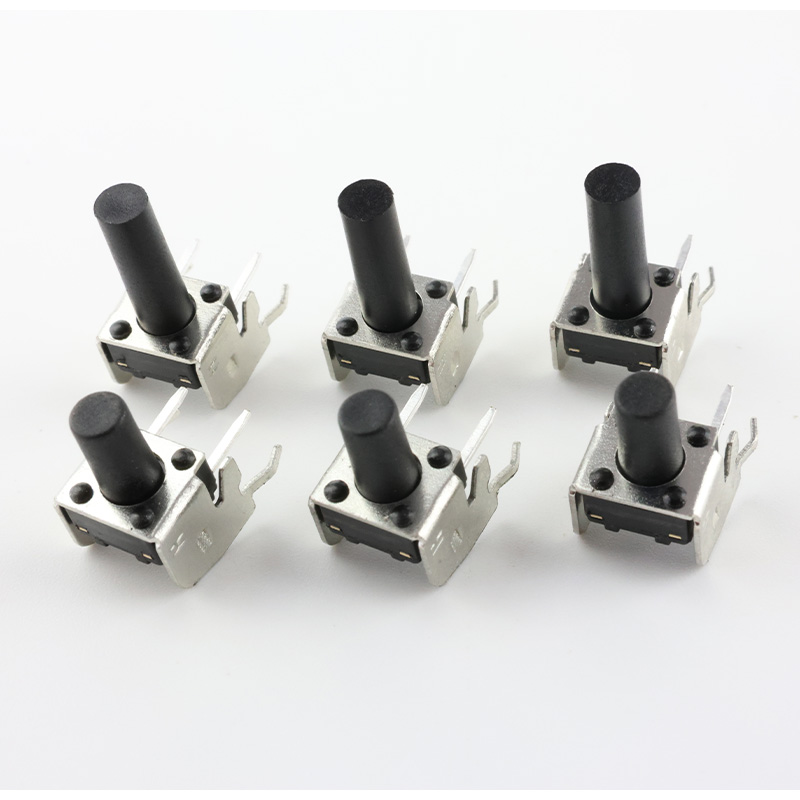

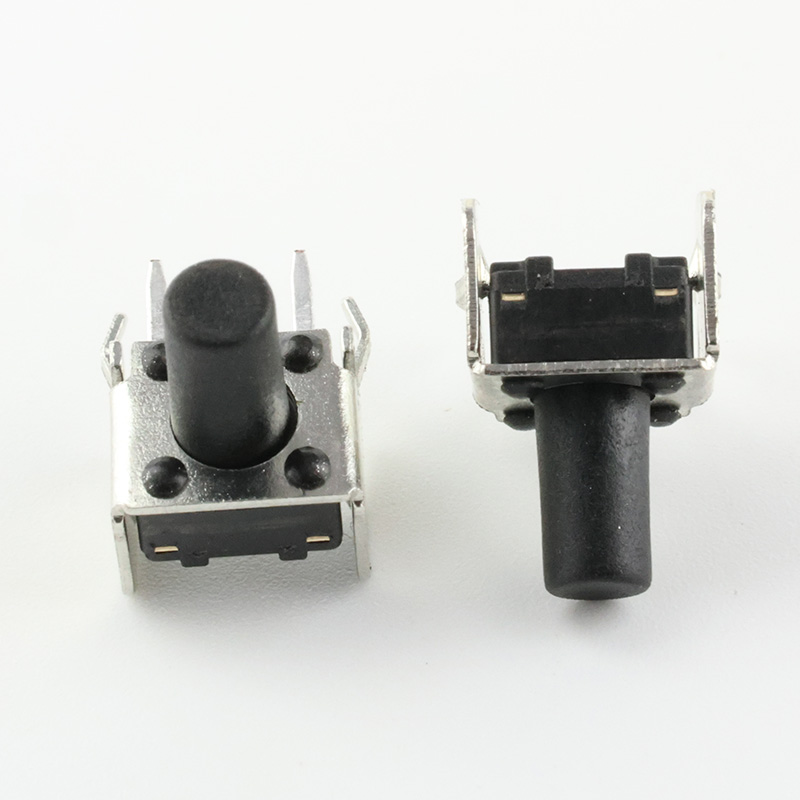

 ※ TSA06238

Funtion: Momentary action
Contact Arrangement: SPST, Normally Open
Termination: Right angle version



※ SPECIFICATION

ELECTRICAL RATING 50mA , DC12V
CONTACT RESISTANCE ≤50mΩ/≤100mΩ
INSULATION RESISTANCE ≥100MΩ
DIELECTRIC STRENGTH AC250V for 1 Minute
LIFE EXPECTANCY 100,000/300,000 cycles
TRAVEL 0.25mm±0.1mm

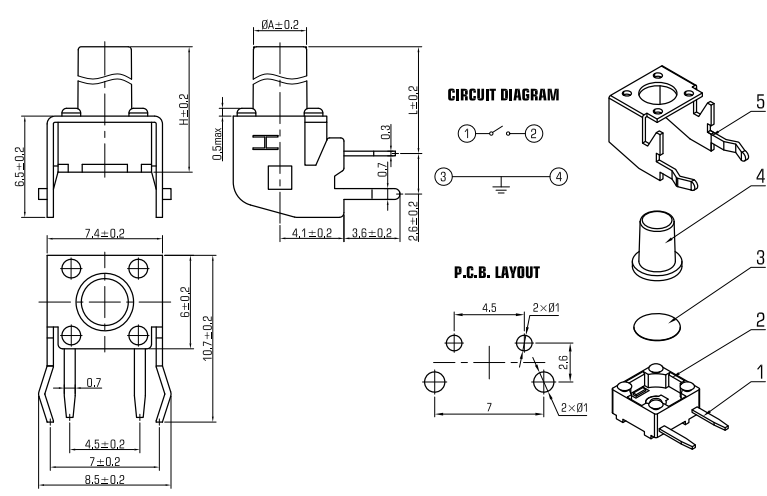

※ DIAGRAM

Product Application
Our products cover household appliances,3C intelligent industrial control, office equipment, medical equipment security equipment and other fields
Industrial control industry
Industrial control industry
Household appliances industry
Household appliances industry
Security equipment industry
Office equipment industry
Computer, Communication, and Consumer electronics industry
Computer, Communication, and Consumer electronics industry
Medical equipment industry
