※ TSB06332-0040
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | SMD |
※ SPECIFICATION
| ELECTRICAL RATING | 50mA , DC12V |
| CONTACT RESISTANCE | ≤50mΩ/≤100mΩ |
| INSULATION RESISTANCE | ≥100MΩ |
| DIELECTRIC STRENGTH | AC250V for 1 Minute |
| LIFE EXPECTANCY | 100,000/300,000 cycles |
| TRAVEL | 0.25mm±0.1mm |

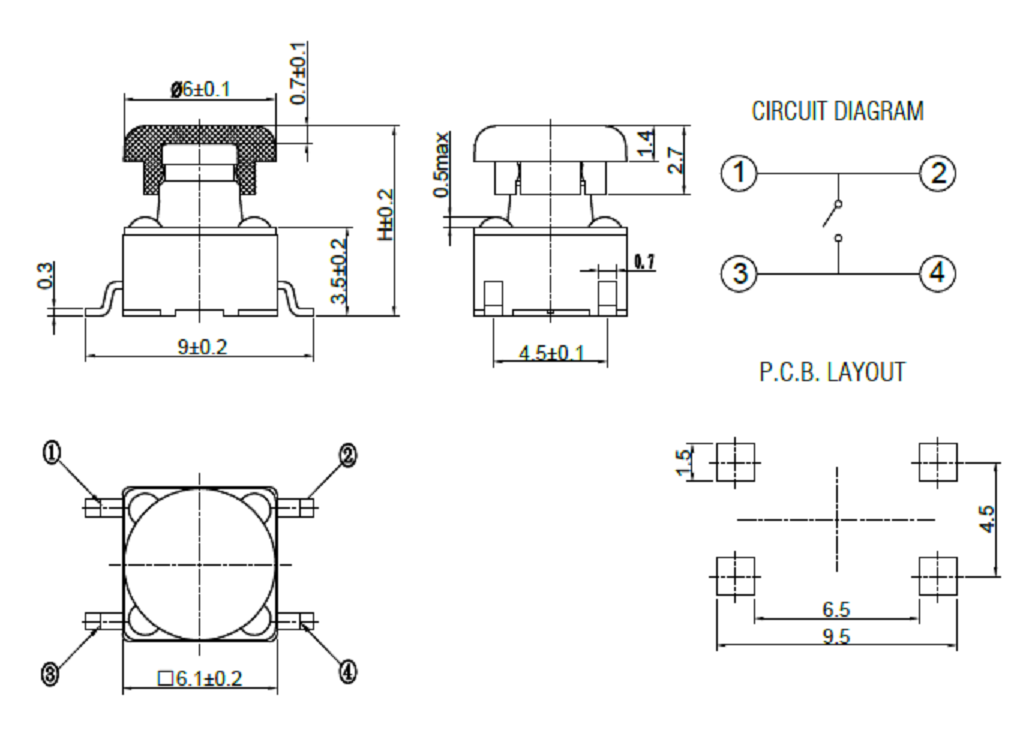

※ DIAGRAM
| H | 7.5 | 9.0 |
