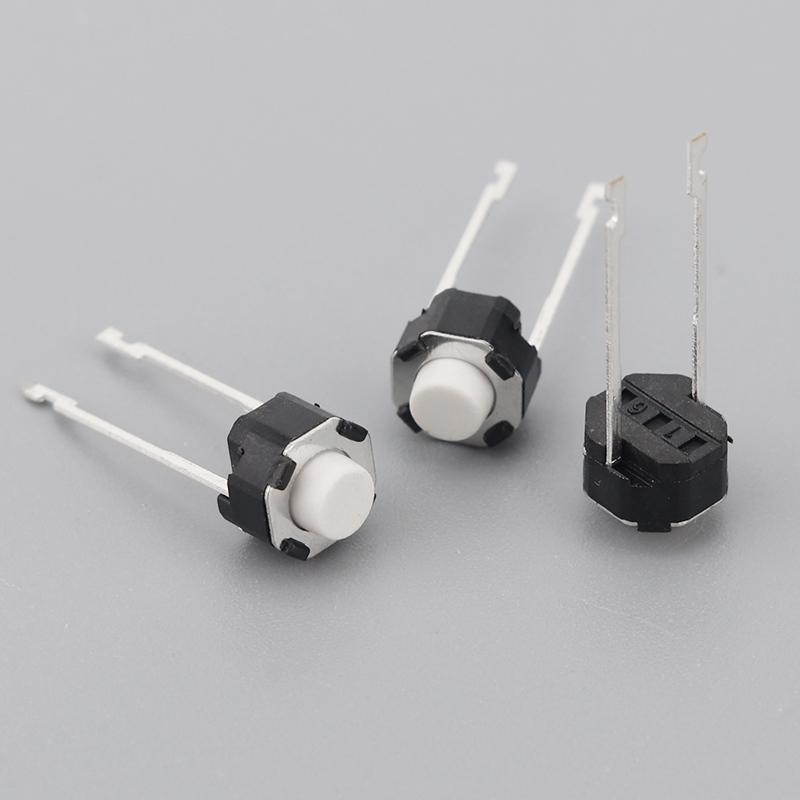

※ TSB06171
| Funtion: | Momentary action |
| Contact Arrangement: | SPST, Normally Open |
| Termination: | THD version |
※ SPECIFICATION
| Contact Rating | 50mA DC12V |
| Dielectric Strength | AC250V for 1 Minute |
| Contact Resistance | 100 mΩ Max. |
| Insulation Resistance | 100MΩ Min. |
| Life Expectancy | 100,000 Operations |
| Travel | 0.25mm ± 0.1mm |

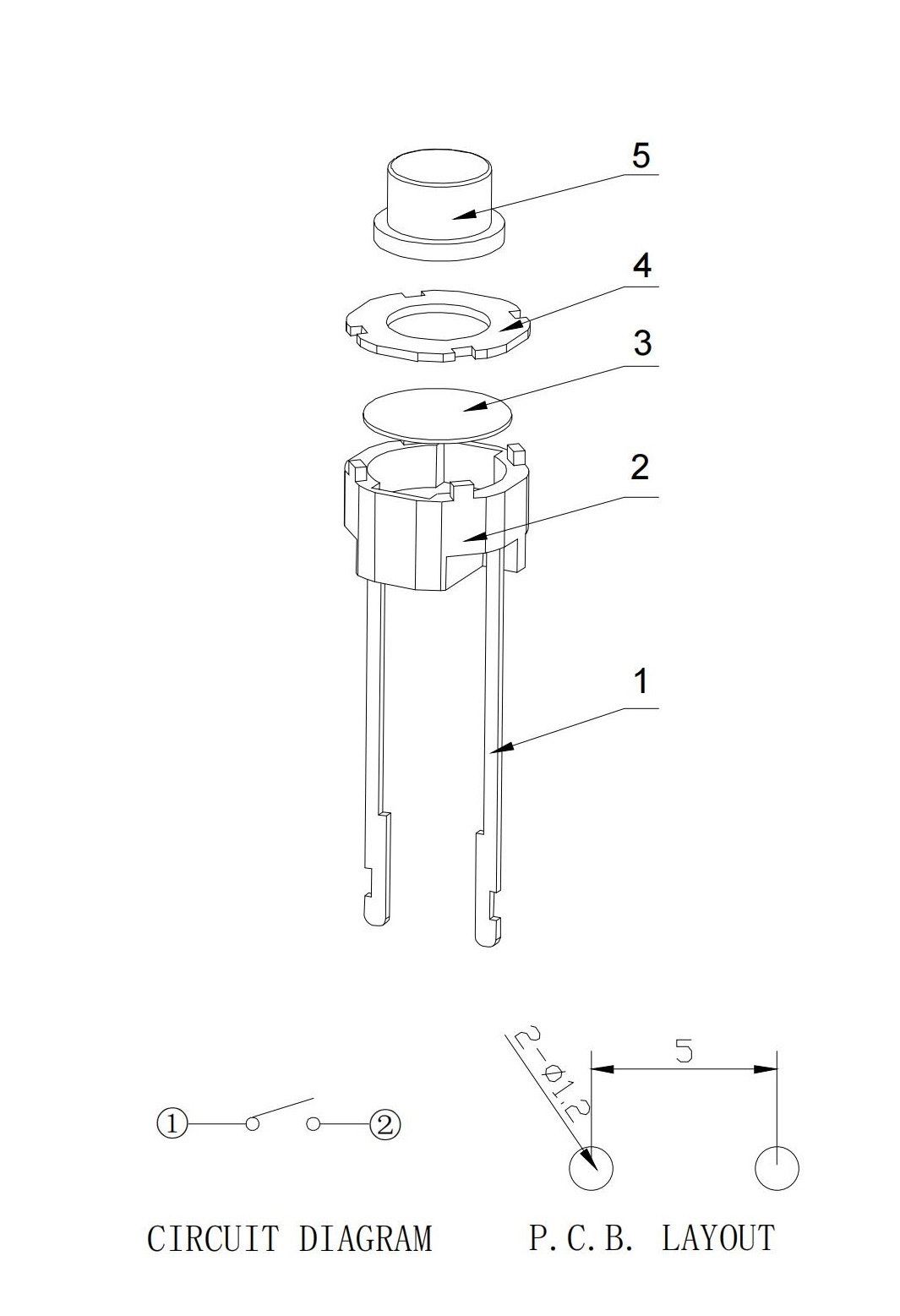

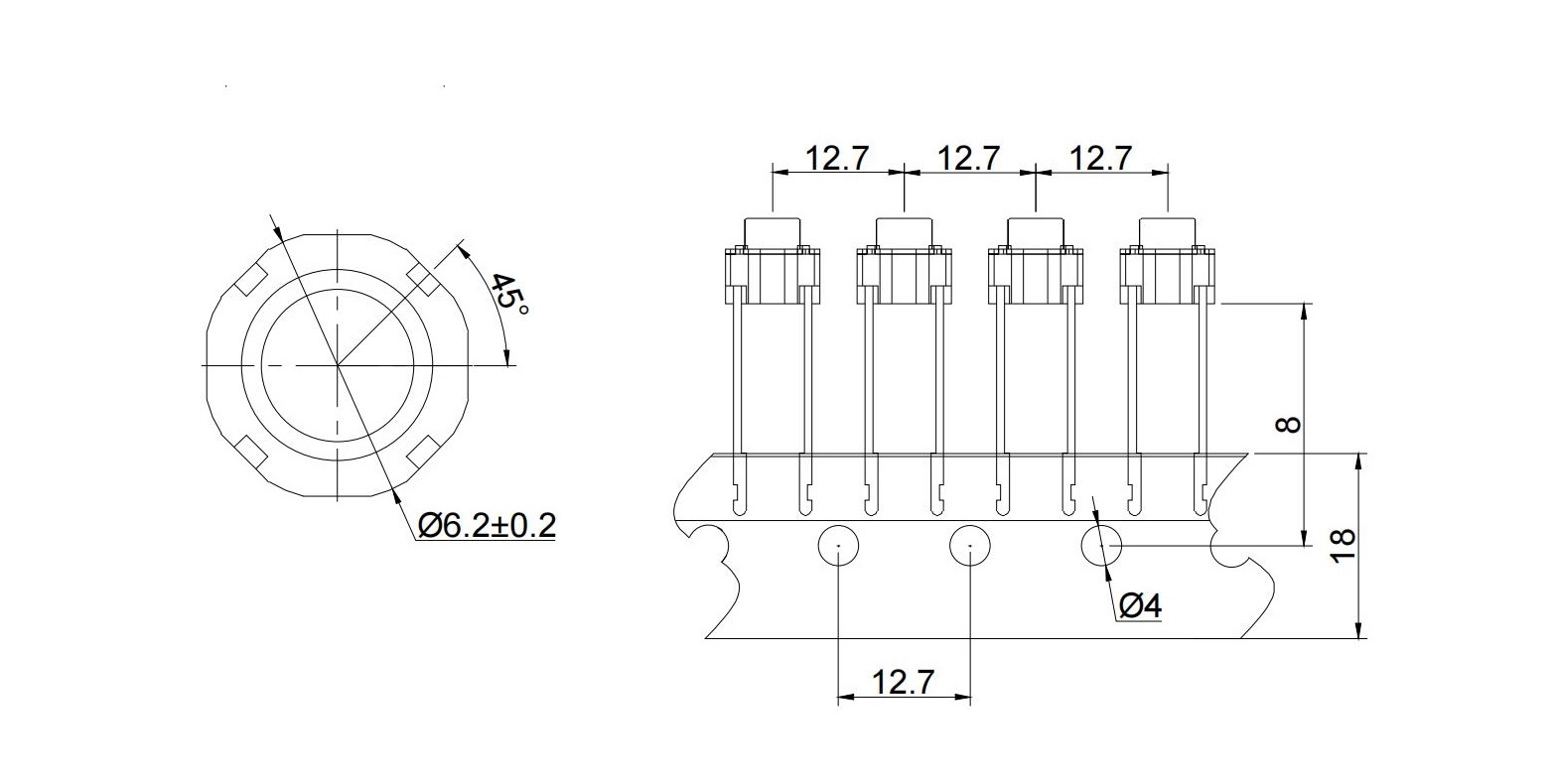

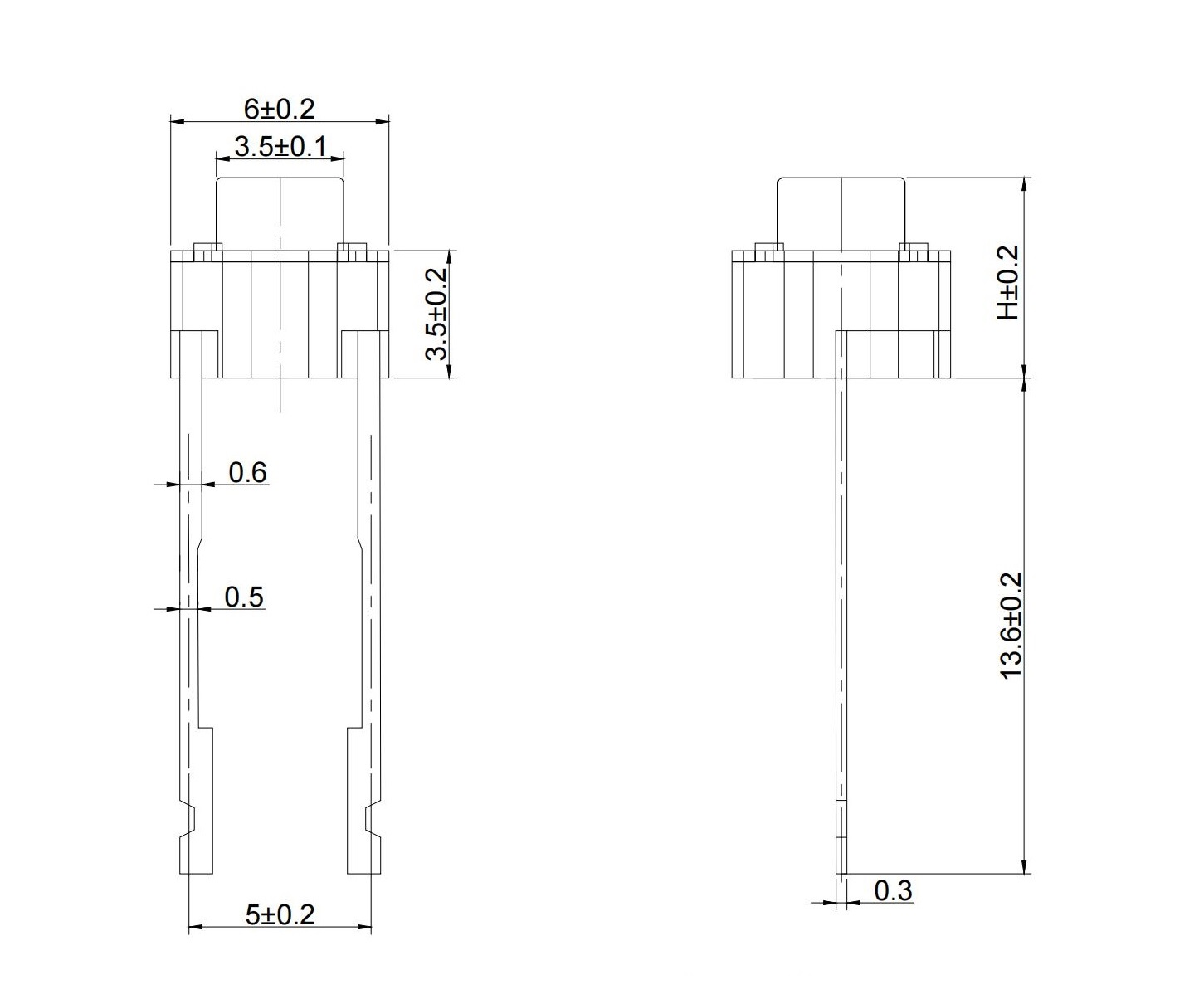

※ DIAGRAM
